CAJ500D Mixing Intermingled Machine

The machine is used to make Intermingled thread,it can mix 2-3 plys yarns through the Air jet intermingled,like for kinds of long fiber yarns.

Return to list→

Product details

The machine is used to make Intermingled thread,it can mix 2-3 plys yarns through the Air jet intermingled,like for kinds of long fiber yarns.

-To keep the machine more steady.looks well,and also easy to install,the machine's wallboard adopt the Metal panel welding,transom use cast product structure.

-Each side with a motor drove,so with inverter it can adjust the machine two sides with running different speed.

-With slide yarn guider,it can take up the Pineapple cone yarn with different angles for easy to rewinding out yarn at next process.

-Optimal yarn path,and with using quality Ceramic Guider,can avoid frazzling the yarns.

-The machine can optional install Oil Device according to requirement.

-Can optional install the Cut device.

-Can optional installed computer controller.

Technical parameter:

Spindle no,S: 96 spindles(8 spindles/section)
Machine type: two sides with single layer
Working speed: <420m/min (mechanical speed 530m/min)
Control: with computer controller
Suitable yarns: <3plys (75-400d fiber yarns,single ply>40d)
Spindle gauge: 382mm
Length per section: 1592mm
Take up bobbin:: φ69*φ57*290
Take up diameter: <φ250mm
Take up weight: <5kg
Winding type: friction roller driving,slide yarn guider
Edge-breaking: stroke modification
Machine power: 8.1kw

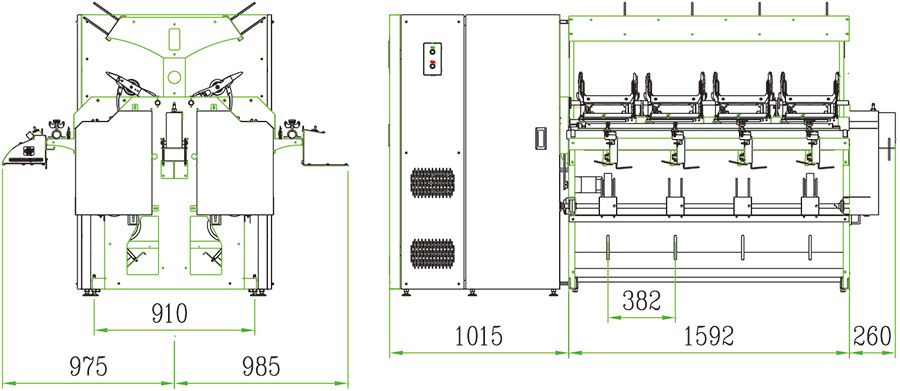

Machine dimension: L(1592mm*section no.S+1300mm)*W(1950)*H(1560)
Machine weight: about5800kg
